BD BodyGuard Infusion Pump

BD BodyGuard Infusion Pump

SKU REM999-603BDEN

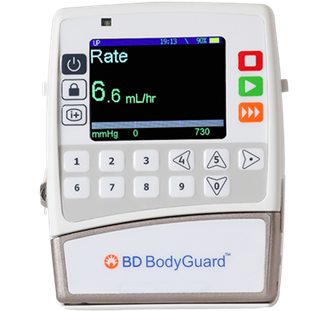

The BD BodyGuard™ infusion pump is a small, lightweight ambulatory infusion pump which offers flexibility and reliability. Effortless transition between hospital and home care requirements is the core of the BD BodyGuard™ infusion pump.

The BD BodyGuard offers Multi-Therapy Solutions.



- +

Patient comfort

  • The BD BodyGuard™ infusion pump offers multi-therapy infusion options
  • With its lightweight, ergonomic design, the BD BodyGuard™ infusion pump is designed to meet user needs and improve experience
  • Long battery life on a single charge promotes freedom
  • A range of supporting accessories are available

Workflow efficiency

  • The BD BodyGuard™ infusion pump’s intuitive, user-friendly interface promotes easy understanding and a reduction in training time
  • The BD BodyGuard™ infusion pump works with all types of IV Bags / bottles, reducing set up time of the infusion when compared to the cassette system

The BD BodyGuard™ infusion pump connects to all types of infusion bags, reducing the setup time of infusion when compared to the cassette system.

Dimensions and weight

  • Weight (with standard battery) 410 g
  • Pump only (H/W/D) 112 x 89 x 40 mm

Wide flow rate range

  • 0.1 - 1200 ml/h
  • Piggyback (Secondary) 0.1 - 1200 ml/h
  • Bolus 0 - 1200 ml/h
  • KVO Rate 0 (OFF) - 20 ml/hr
  • Flow rate accuracy* ± 5 %

Volume to be infused

  • 0.1 - 9999 ml

Patient safety

  • Ultrasonic Air Sensor Air bubble size 0.04 – 2 ml
  • Occlusion Pressure 100-1500 mmHg (10 mmHg increments)

Programmable infusion time (Dose over time)

  • 100 hrs

Complies with the current version of the following standards

  • IEC 60601-1, IEC 60601-1-2, IEC 60601-1-6, IEC 60601-1-8,
  • IEC 60601-1-11, IEC 60601-1-12, IEC 60601-2-24

Power supply

  • 110-240 VAC, 50/60 Hz. 0.3A max

Battery specifications

  • Rechargeable Li-Polymer 7.4 V Battery
  • 1800 mAh.

Rate (mL/h)        Approx. Battery life (hours)
25 & 125              15
1200                      8
3600 mAh. Life at 125 ml/h (optional) up to 30 h
Pump alarms/alerts

  • Air in line / Up Occlusion, Down Occlusion, Near End Program,
  • End Program / End of Infusion, Low Battery, End Battery, Pump Unattended, Door Open, System Error, Missing Set Key, with the use of flow sensor accessory

Ports

  • 1 x RJ45 – for drop sensor
  • 1 x RS232 (Male) – for PC communication
